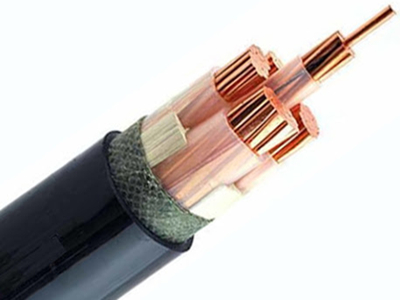

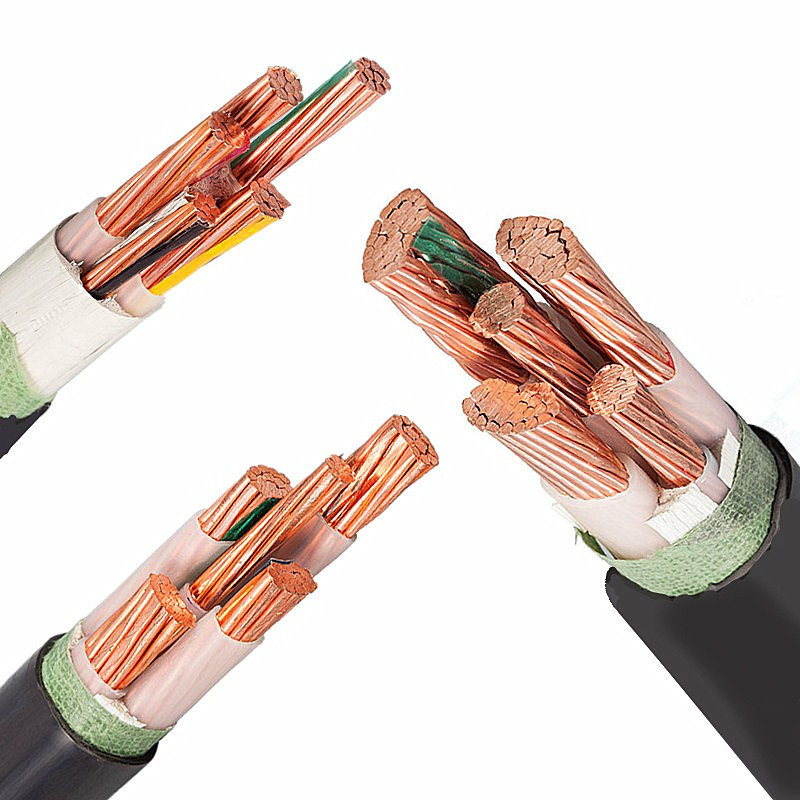

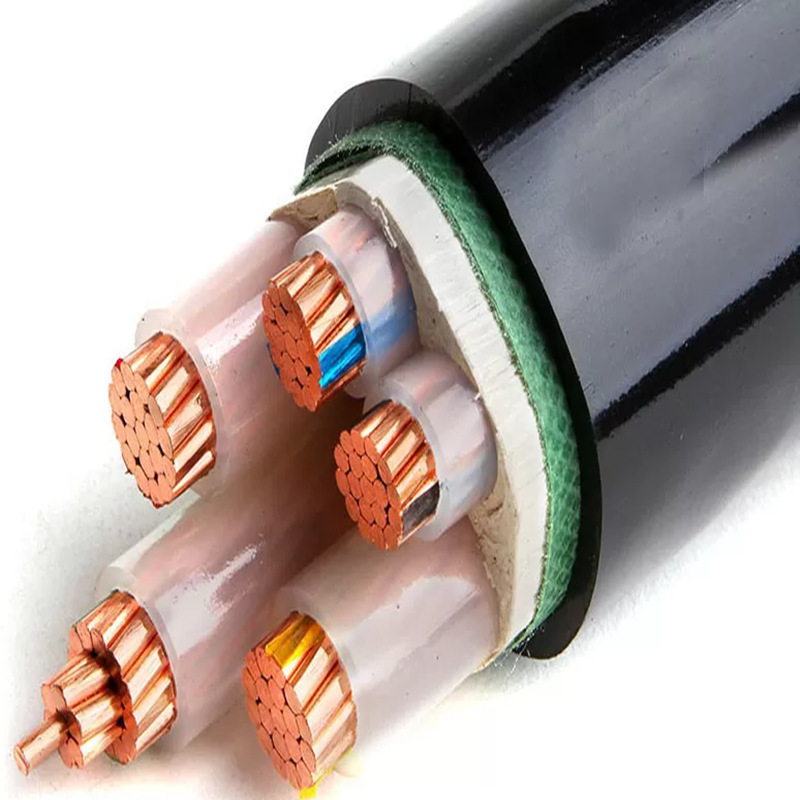

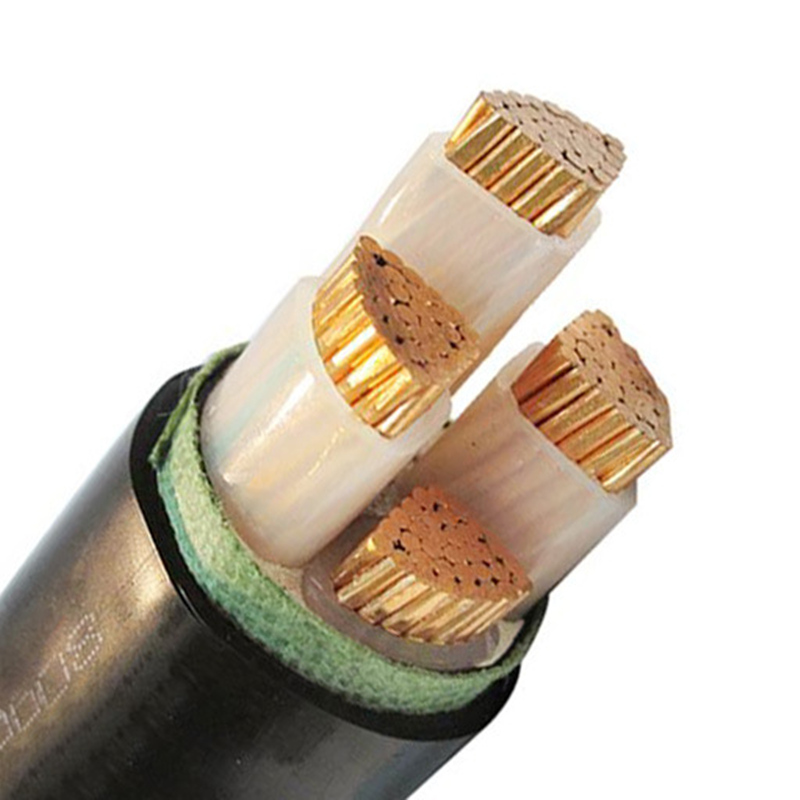

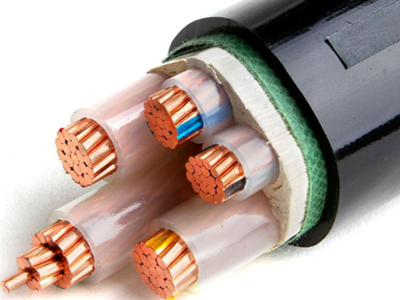

XLPE isolécâbles d'alimentation yjv gainés pvc, 0,6 / 1kv, cu / xlpe / pvc /pvc, conducteur en cuivre, isolation xlpe, gaine intérieure en pvc,gaine en PVC, conforme à GB / T 12706, CEI 60502, BS 7889.
Marque:
Hante，HANTEarticle no.:
XTD-YJV-01ordre (moq):
100 metersPaiement:
T/T 30% the deposit, the balance will be paidprix du marché:
$/M 28.88Prix:
$25.18/28.88 per meterorigine du produit:
Hubei Province, China.Couleur:
Black or others.port d'expédition:
Wuhan, Shanghai, Guangzhou, Shenzhen, or other Chinese port.Delai：
Within 7-10 working days as soon as wepoids：
1680 KG/KMxlpe insulated pvc sheathed yjv power cables
main keywords
u-1000 r2v, r02v, bs 7889,6181x, 6182x, 6183x, 6184x, 6185x, yjv power cable, cv power cable,
cu/xlpe/pvc, cu/xlpe/pvc/pvc cable.
application characteristics
xlpe insulated pvc sheathed yjv power cable,copper conductor, xlpe insulation,pvc inner sheath,pvc out sheath,U0/u: 0.6/1kv.suitable for installation in areas with reduced risk of mechanicaldamage; on tray, in free air or clipped direct. suitable also for conduit andwiring installations when mechanical protection is required.
products structure
---conductor material
pure annealed copper wire, solid class 1, or strand class 2.
---insulation material
xlpe(cross-linked polyethylene).
---insulation color
1c: brown, blue, red, yellow, green, black, or others.
2c: brown, blue
3c: brown, blue, yellow/green
4c: brown, blue, black, yellow/green,
5c: brown, blue, black, grey, yellow/green
remark: the insulated color is nature and close to transparent, then it with a colored tape.
---filler material
fiberglass tape.
---cabling material
non-woven fabrics
---inner sheath material
pvc(polyvinyl chloride).
---armored material
unarmored.
---sheath material (out insulation)
pvc (polyvinyl chloride)
---sheath color
black, or others.
---core number
2～5 cores, 2c～5c.
---voltage rate(U0/U)
0.6/1kv, 600/1000v (um: 1.2kv).
---working temperature
-15℃～+90℃.
---minimum bending radius
fixed: 20 x out diameter.
---production standard
gb/t 12706, iec 60502, bs 7889.
---products delivery
within 10-15 working days as soon as we received the deposit.
remark
---the aboveinformation is only foryou reference, for the formaltechnicaldata, please refer to the actual cables.
---the product can have flame retardant, fire-resistantor low smoking zero halogen properties, and their working temperature can be 90 degree, but the production process and insulation materials maybe hasa few of different.
---for the yjv powercable, accordingto the practice, the common specification is 50～300 mm2.
---the oem or obm servicewill be accepted, but the customer should be provided the authorization letter tous in advance, and the authorization letter must be true and valid.
---hante cable:embrace new times, co-create xintiandi; focus on quality, foremost service.
---hante cable: goodmaterial, reasonable weight, enough length, well-known brand wins your trust.
main advantage
hot-selling products
raw material
production process
inspection process
frequently asked questions
1. are you the manufacturer ortrading company?
wuhan xitiandi electrical technology co., ltd (hante cable), isthe professional in wire and cables manufacturer. we can control yourorder from the first begining to the last. welcome to visit hante cable,we'll pick you up in wuhan airport or high-speed railways station.
single core medium voltage power cables
main keywords
single core medium voltage power cable, n2xsy power cable, bs 6622 xlpe-pvc power cable,
bs 7835 xlpe-lszh power cable,8.7/10kv 8.7/15kv 26/35kv and other mv power cable with voltage rate.
application characteristics
single core medium voltage power cable, copperwire or aluminum wire conductor, semi-conductive screened tape, xlpe insulated,semi-conductive screened tape, pvc inner sheath, copper tape screened, pvcinner sheath, steel tape or steel wire armored (armored material is optioned), pvcout sheath, u0/u: 3.6/6kv～26/35kv. mediumvoltage power cable is applied to the transmission and distribution lines with ratedvoltage from 3.6/6kv to 26/35kv, to be laid directly in ground, outdoors,indoors and in cable ducts.
products structure
---conductor material
plainannealed compacted stranded copper wire.
---conductor identification
colored tape under the screen
---insulation material
xlpe (cross-linkedpolyethylene).
---screen material
semi-conductinglayer with a copper tape screen covering each core
---bedding material
pvc (polyvinylchloride)
---armored material (option)
galvanized steeltape, or galvanized steel wire.
---out sheath material
pvc (polyvinylchloride)
---sheath color
black, orothers.
---core number
single core,1c.
---voltage rate (u0/u)
3.6/6kv～26/35kv
---working temperature
-15℃～+90℃.
---minimum bending radius
20 x outdiameter
---production standard
---products delivery
within 15-20 working days as soon as we received the deposit.
products specification
8.7/10kv, 8.7/15kv (un-armored material)
cross section area (mm2) | conductor material | conductor structure (pcs/mm) | xlpe insulated thickness (mm) | pvc sheathed thickness (mm) | refer max. out diameter (mm) | refer net weight (kg/km) | max. dc conductor resistance at 20℃ (Ω/km) | refer current rating in air (a) | refer current rating in ground (a) |
1x25 | copper wire | 1C 7/2.14 | 4.5 | 1.6 | 22.0 | 696 | 0.727 | 165 | 160 |
1x35 | copper wire | 1C 7/2.52 | 4.5 | 1.6 | 23.0 | 819 | 0.524 | 205 | 190 |
1x50 | copper wire | 1C 19/1.78 | 4.5 | 1.7 | 24.5 | 970 | 0.387 | 245 | 225 |
1x70 | copper wire | 1C 19/2.14 | 4.5 | 1.8 | 26.2 | 1191 | 0.268 | 305 | 275 |
1x95 | copper wire | 1C 19/2.52 | 4.5 | 1.8 | 27.9 | 1493 | 0.193 | 370 | 330 |
1x120 | copper wire | 1C 37/2.04 | 4.5 | 1.9 | 29.5 | 1760 | 0.153 | 430 | 375 |
1x150 | copper wire | 1C 37/2.25 | 4.5 | 1.9 | 31.1 | 2085 | 0.124 | 490 | 425 |
1x185 | copper wire | 1C 37/2.52 | 4.5 | 2.0 | 32.8 | 2391 | 0.0991 | 560 | 480 |
1x240 | copper wire | 1C 48/2.52 | 4.5 | 2.1 | 35.3 | 2973 | 0.0754 | 665 | 555 |
1x300 | copper wire | 1C 61/2.52 | 4.5 | 2.2 | 37.7 | 3657 | 0.0601 | 765 | 630 |
1x400 | copper wire | 1C 61/2.85 | 4.5 | 2.3 | 40.9 | 4571 | 0.0470 | 890 | 725 |
1x500 | copper wire | 1C 100/2.52 | 4.5 | 2.4 | 44.4 | 5692 | 0.0366 | 1030 | 825 |
1x630 | copper wire | 1C 126/2.52 | 4.5 | 2.5 | 48.0 | 6945 | 0.0283 | 1160 | 940 |
8.7/10kv 8.7/15kvyjv22(steel tape armored)
cross section area (mm2) | conductor material | conductor structure (pcs/mm) | xlpe insulated thickness (mm) | pvc sheathed thickness (mm) | refer max. out diameter (mm) | refer net weight (kg/km) | max. dc conductor resistance at 20℃ (Ω/km) | refer current rating in air (a) | refer current rating in ground (a) |
1x25 | copper wire | 1C 7/2.14 | 4.5 | 1.8 | 25.6 | 919 | 0.727 | 165 | 160 |
1x35 | copper wire | 1C 7/2.52 | 4.5 | 1.8 | 26.6 | 1055 | 0.524 | 205 | 190 |
1x50 | copper wire | 1C 19/1.78 | 4.5 | 1.8 | 27.9 | 1219 | 0.387 | 245 | 225 |
1x70 | copper wire | 1C 19/2.14 | 4.5 | 1.9 | 30.8 | 1458 | 0.268 | 305 | 275 |
1x95 | copper wire | 1C 19/2.52 | 4.5 | 2.0 | 32.7 | 1780 | 0.193 | 370 | 330 |
1x120 | copper wire | 1C 37/2.04 | 4.5 | 2.0 | 34.1 | 2312 | 0.153 | 430 | 375 |
1x150 | copper wire | 1C 37/2.25 | 4.5 | 2.1 | 35.9 | 2670 | 0.124 | 490 | 425 |
1x185 | copper wire | 1C 37/2.52 | 4.5 | 2.2 | 37.6 | 3007 | 0.0991 | 560 | 480 |
1x240 | copper wire | 1C 48/2.52 | 4.5 | 2.2 | 39.9 | 3621 | 0.0754 | 665 | 555 |
1x300 | copper wire | 1C 61/2.52 | 4.5 | 2.3 | 42.5 | 4330 | 0.0601 | 765 | 630 |
1x400 | copper wire | 1C 61/2.85 | 4.5 | 2.4 | 45.7 | 5281 | 0.0470 | 890 | 725 |
1x500 | copper wire | 1C 100/2.52 | 4.5 | 2.5 | 49.4 | 6442 | 0.0366 | 1030 | 825 |
1x630 | copper wire | 1C 126/2.52 | 4.5 | 2.7 | 53.4 | 7766 | 0.0283 | 1160 | 940 |
8.7/10kv 8.7/15kvyjv32(steel wire armored)
cross section area (mm2) | conductor material | conductor structure (pcs/mm) | xlpe insulated thickness (mm) | pvc sheathed thickness (mm) | refer max. out diameter (mm) | refer net weight (kg/km) | max. dc conductor resistance at 20℃ (Ω/km) | refer current rating in air (a) | refer current rating in ground (a) |
1x25 | copper wire | 1C 7/2.14 | 4.5 | 1.9 | 29.0 | 1846 | 0.727 | 165 | 160 |
1x35 | copper wire | 1C 7/2.52 | 4.5 | 1.9 | 30.0 | 2026 | 0.524 | 205 | 190 |
1x50 | copper wire | 1C 19/1.78 | 4.5 | 2.0 | 31.5 | 2237 | 0.387 | 245 | 225 |
1x70 | copper wire | 1C 19/2.14 | 4.5 | 2.0 | 33.0 | 2520 | 0.268 | 305 | 275 |
1x95 | copper wire | 1C 19/2.52 | 4.5 | 2.1 | 34.9 | 2911 | 0.193 | 370 | 330 |
1x120 | copper wire | 1C 37/2.04 | 4.5 | 2.2 | 37.5 | 3690 | 0.153 | 430 | 375 |
1x150 | copper wire | 1C 37/2.25 | 4.5 | 2.2 | 39.1 | 4005 | 0.124 | 490 | 425 |
1x185 | copper wire | 1C 37/2.52 | 4.5 | 2.3 | 40.8 | 4402 | 0.0991 | 560 | 480 |
1x240 | copper wire | 1C 48/2.52 | 4.5 | 2.3 | 43.1 | 5104 | 0.0754 | 665 | 555 |
1x300 | copper wire | 1C 61/2.52 | 4.5 | 2.4 | 45.7 | 5908 | 0.0601 | 765 | 630 |
1x400 | copper wire | 1C 61/2.85 | 4.5 | 2.5 | 48.9 | 6982 | 0.0470 | 890 | 725 |
1x500 | copper wire | 1C 100/2.52 | 4.5 | 2.6 | 52.6 | 8287 | 0.0366 | 1030 | 825 |
1x630 | copper wire | 1C 126/2.52 | 4.5 | 2.8 | 56.6 | 9789 | 0.0283 | 1160 | 940 |
26/35kv yjv(unarmored material)
cross section area (mm2) | conductor material | conductor structure (pcs/mm) | xlpe insulated thickness (mm) | pvc sheathed thickness (mm) | refer max. out diameter (mm) | refer net weight (kg/km) | max. dc conductor resistance at 20℃ (Ω/km) | refer current rating in air (a) | refer current rating in ground (a) |
1x50 | copper wire | 1C 19/1.78 | 10.5 | 2.2 | 38.7 | 1727 | 0.387 | 245 | 225 |
1x70 | copper wire | 1C 19/2.14 | 10.5 | 2.2 | 40.2 | 1980 | 0.268 | 305 | 275 |
1x95 | copper wire | 1C 19/2.52 | 10.5 | 2.3 | 42.1 | 2335 | 0.193 | 370 | 330 |
1x120 | copper wire | 1C 37/2.04 | 10.5 | 2.4 | 43.7 | 2650 | 0.153 | 430 | 375 |
1x150 | copper wire | 1C 37/2.25 | 10.5 | 2.4 | 45.3 | 3016 | 0.124 | 490 | 425 |
1x185 | copper wire | 1C 37/2.52 | 10.5 | 2.5 | 47.0 | 3377 | 0.0991 | 560 | 480 |
1x240 | copper wire | 1C 48/2.52 | 10.5 | 2.5 | 49.3 | 3996 | 0.0754 | 665 | 555 |
1x300 | copper wire | 1C 61/2.52 | 10.5 | 2.6 | 51.7 | 4733 | 0.0601 | 765 | 630 |
1x400 | copper wire | 1C 61/2.85 | 10.5 | 2.7 | 54.9 | 5723 | 0.0470 | 890 | 725 |
1x500 | copper wire | 1C 100/2.52 | 10.5 | 2.8 | 59.8 | 7068 | 0.0366 | 1030 | 825 |
1x630 | copper wire | 1C 126/2.52 | 10.5 | 3.0 | 63.6 | 8418 | 0.0283 | 1160 | 940 |
26/35kv yjv22(steel tape armored)
cross section area (mm2) | conductor material | conductor structure (pcs/mm) | xlpe insulated thickness (mm) | pvc sheathed thickness (mm) | refer max. out diameter (mm) | refer net weight (kg/km) | max. dc conductor resistance at 20℃ (Ω/km) | refer current rating in air (a) | refer current rating in ground (a) |
1x50 | copper wire | 1C 19/1.78 | 10.5 | 2.4 | 43.7 | 2600 | 0.387 | 245 | 225 |
1x70 | copper wire | 1C 19/2.14 | 10.5 | 2.4 | 45.2 | 2890 | 0.268 | 305 | 275 |
1x95 | copper wire | 1C 19/2.52 | 10.5 | 2.5 | 47.1 | 3270 | 0.193 | 370 | 330 |
1x120 | copper wire | 1C 37/2.04 | 10.5 | 2.5 | 48.7 | 3600 | 0.153 | 430 | 375 |
1x150 | copper wire | 1C 37/2.25 | 10.5 | 2.6 | 50.5 | 4020 | 0.124 | 490 | 425 |
1x185 | copper wire | 1C 37/2.52 | 10.5 | 2.6 | 52.0 | 4410 | 0.0991 | 560 | 480 |
1x240 | copper wire | 1C 48/2.52 | 10.5 | 2.7 | 54.7 | 5110 | 0.0754 | 665 | 555 |
1x300 | copper wire | 1C 61/2.52 | 10.5 | 2.8 | 57.1 | 5900 | 0.0601 | 765 | 630 |
1x400 | copper wire | 1C 61/2.85 | 10.5 | 2.9 | 60.5 | 6340 | 0.0470 | 890 | 725 |
1x500 | copper wire | 1C 100/2.52 | 10.5 | 3.0 | 65.6 | 8380 | 0.0366 | 1030 | 825 |
1x630 | copper wire | 1C 126/2.52 | 10.5 | 3.1 | 69.2 | 9790 | 0.0283 | 1160 | 940 |
26/35kv yjv32(steel wire armored)
cross section area (mm2) | conductor material | conductor structure (pcs/mm) | xlpe insulated thickness (mm) | pvc sheathed thickness (mm) | refer max. out diameter (mm) | refer net weight (kg/km) | max. dc conductor resistance at 20℃ (Ω/km) | refer current rating in air (a) | refer current rating in ground (a) |
1x50 | copper wire | 1C 19/1.78 | 10.5 | 2.5 | 46.9 | 4030 | 0.387 | 245 | 225 |
1x70 | copper wire | 1C 19/2.14 | 10.5 | 2.5 | 48.4 | 4380 | 0.268 | 305 | 275 |
1x95 | copper wire | 1C 19/2.52 | 10.5 | 2.6 | 50.3 | 4830 | 0.193 | 370 | 330 |
1x120 | copper wire | 1C 37/2.04 | 10.5 | 2.6 | 51.9 | 5250 | 0.153 | 430 | 375 |
1x150 | copper wire | 1C 37/2.25 | 10.5 | 2.7 | 53.7 | 5730 | 0.124 | 490 | 425 |
1x185 | copper wire | 1C 37/2.52 | 10.5 | 2.7 | 55.2 | 6160 | 0.0991 | 560 | 480 |
1x240 | copper wire | 1C 48/2.52 | 10.5 | 2.8 | 57.9 | 6940 | 0.0754 | 665 | 555 |
1x300 | copper wire | 1C 61/2.52 | 10.5 | 2.9 | 60.3 | 7810 | 0.0601 | 765 | 630 |
1x400 | copper wire | 1C 61/2.85 | 10.5 | 3.0 | 63.7 | 8990 | 0.0470 | 890 | 725 |
1x500 | copper wire | 1C 100/2.52 | 10.5 | 3.1 | 68.8 | 10500 | 0.0366 | 1030 | 825 |
1x630 | copper wire | 1C 126/2.52 | 10.5 | 3.3 | 72.6 | 12080 | 0.0283 | 1160 | 940 |
remark
---the aboveinformation is only foryou reference, for the formaltechnicaldata, please refer to the actual cables.
---the product can have flame retardant, fire-resistantor low smoking zero halogen properties, but the production process and insulation materials maybe hasa few of different.
---fore the single core medium voltage powercable, accordingto the practice, the common specification is 95～300 mm2.
---the oem or obm servicewill be accepted, but the customer should be provided the authorization letter tous in advance, and the authorization letter must be true and valid.
---hante cable:embrace new times, co-create xintiandi; focus on quality, foremost service.
---hante cable: goodmaterial, reasonable weight, enough length, well-known brand wins your trust.
main advantage
hot-selling products
raw material
production process
inspection process
frequently asked questions
1. are you the manufacturer ortrading company?
wuhan xitiandi electrical technology co., ltd (hante cable), isthe professional in wire and cables manufacturer. we can control yourorder from the first begining to the last. welcome to visit hante cable,we'll pick you up in wuhan airport or high-speed railways station.
